Precision Surgical & Micro-Orthopedic Instruments
Explore our premium medical-grade instruments engineered with German DIN standard stainless steel, micro-passivated finishes, and exact ergonomic balance for demanding surgical workflows.
Advanced Manufacturing Science of Bone Gouges & Surgical Tools
An authoritative breakdown of material selection, closed-die forging, vacuum heat treatment, and surface passivation standards driving clinical reliability in orthopedic operating theaters.
Martensitic AISI 420/420B Alloys
Surgical bone gouges require an optimal threshold between high yield strength and crack toughness. We exclusively utilize German-standard martensitic stainless steels (AISI 420 / 420B, DIN 1.4021/1.4028) featuring 12-14% chromium content to prevent intergranular micro-corrosion during severe impact loading.
Vacuum Thermal Hardening (50-54 HRC)
Every bone gouge undergoes computer-controlled vacuum hardening and multi-stage tempering cycles. This metallurgical refinement fixes working blade hardness precisely at 50 to 54 HRC on the Rockwell scale, ensuring razor-sharp concave bevel durability without risk of chipping during dense cortical bone resection.
Ultrasonic Passivation & Cleanliness
Following high-precision CNC grinding and manual edge balancing, instruments pass through multi-stage ultrasonic baths and nitric/citric acid passivation (per ASTM A967). This fully restores the chromium oxide passive layer, neutralizing iron debris and resisting steam autoclaving up to 134°C (2.2 bar).
Comprehensive Material & Functional Comparison Matrix
Empowering medical device procurement officers with verified physical parameters and structural standards across primary orthopedic bone instrument categories.
| Instrument Class | Standard Material Grade | Hardness Rating (HRC) | Typical Bevel Radius | Sterilization Lifespan | Primary Clinical Intent |
|---|---|---|---|---|---|
| Curved Surgical Bone Gouges | German AISI 420B (DIN 1.4028) | 52 - 54 HRC | 3 mm to 25 mm Concave | 500+ Autoclave Cycles | Harvesting cancellous bone grafts & delicate spinal sculpturing |
| Straight Orthopedic Osteotomes | AISI 420 Martensitic Steel | 50 - 52 HRC | Bi-bevel Flat (15°/15°) | 500+ Autoclave Cycles | Precise linear cortical bone sectioning and joint resection |
| Double-Action Bone Rongeurs | AISI 420 / 304 Joint Pin | 48 - 52 HRC Jaws | Biting Scoop 2 mm - 6 mm | 400+ Autoclave Cycles | Nipping away dense bone fragments & soft tissue clearing |
| Micro Neurosurgical Gouges | Titanium Gr5 / AISI 420 | 54 - 56 HRC Tip | 0.5 mm - 2.5 mm Micro | 600+ Autoclave Cycles | Microsurgical spinal laminectomy & auditory ossicle shaping |

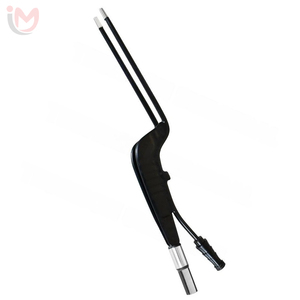

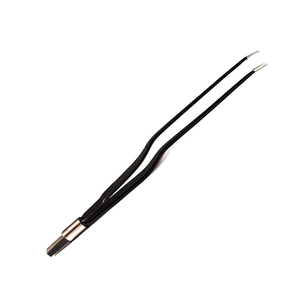

| Bayonet Electrosurgical Forceps | AISI 304 Shank / Solid Silver Tip | N/A (Insulated Shank) | 0.3 mm - 2.0 mm Fine Tip | 300+ Autoclave Cycles | Hemostatic tissue coagulation without lateral thermal damage |
Custom B2B OEM & Private Label Production Ecosystem
As a premier China wholesale bone gouges manufacturer and exporter, we provide global medical brand owners, hospital suppliers, and orthopedic distributors with end-to-end contract manufacturing. From initial forging die tooling to laser UDI marking, we guarantee international regulatory alignment.
Future Trends in Surgical Instrument Manufacturing & Global Sourcing
Key technological advancements, regulatory shifts, and supply chain strategies shaping the orthopedic wholesale market over the next decade.
1. Physical Vapor Deposition (PVD) & DLC Coatings
Future orthopedic gouges and resecting tools are increasingly adopting Titanium Aluminum Nitride (TiAlN) and Diamond-Like Carbon (DLC) physical vapor deposition coatings. These ultra-thin layers boost surface hardness beyond 70 HRC, eliminate specular glare under high-intensity operating room lighting, and drastically decrease friction during bone tissue scooping.
2. Ergonomic Hybrid Handle Architectures
Traditional solid stainless steel handles are giving way to advanced ergonomic hybrid handles incorporating medical-grade silicone overlays or lightened hollow-surfaced stainless geometric patterns. This shift minimizes surgeon hand fatigue during prolonged orthopedic spinal procedures while facilitating thorough internal cleaning in automated washer-disinfectors.
3. Stringent Regulatory Traceability (EU MDR & FDA)
With the global enforcement of the European Union Medical Device Regulation (EU MDR 2017/745) and US FDA Unique Device Identification (UDI) mandates, hospital procurement channels demand complete technical files. Direct laser serialization, full heat-lot material certificates, and validated biocompatibility testing have become non-negotiable prerequisites for importers.
Why Global Buyers Partner with Our Manufacturing Facility
We bridge the gap between competitive Chinese manufacturing efficiency and uncompromising European quality benchmarks.
Certified ISO 13485 Quality Management System
Our production plant operates under a rigorously audited ISO 13485 QMS. Every manufacturing stage—from raw bar stock arrival to final dimensional inspection under optical comparators—follows standardized CAPA and AQL 1.0 sampling protocols to ensure zero-defect delivery.
Integrated Forging to Passivation Plant
Unlike trading intermediaries, we maintain complete control over closed-die drop forging, high-precision 5-axis CNC machining, hand-fitting by master craftsmen, vacuum heat treatment furnaces, and automated passivation lines within a single unified industrial facility.
Transparent Logistics & Export Compliance
Exporting to over 45 countries, our dedicated international sales engineering team prepares comprehensive documentation, including Certificates of Origin, Declarations of Conformity, Commercial Invoices, and Packing Lists aligned with FOB, CIF, or DDP incoterms.
Frequently Asked Questions for Bulk Procurement
Direct answers to essential technical and commercial questions raised by medical instrument importers and hospital purchasing agents.
What is the typical Minimum Order Quantity (MOQ) for custom bone gouges?
For standard catalog bone gouges and surgical forceps, our Minimum Order Quantity starts at just 50 pieces per reference. For bespoke instruments requiring custom drop-forging dies or highly unique handle geometry, we recommend an initial production run of 100 to 250 pieces to amortize tooling overhead efficiently.
Which stainless steel grades are utilized for surgical bone gouges?
We primarily utilize high-grade German-standard martensitic stainless steels, specifically AISI 420 (DIN 1.4021) and AISI 420B (DIN 1.4028) for cutting and bone-sculpting blades to achieve 50–54 HRC hardness. Non-cutting components, trays, and retractors are fabricated from corrosion-resistant austenitic AISI 304 or 316L stainless steel.
Are your surgical tools certified under EU MDR and US FDA regulations?
Yes. Our manufacturing infrastructure complies fully with ISO 13485:2016 standards. Our reusable surgical instrument families hold CE marking under applicable EU regulations, and our manufacturing establishment is registered with the US FDA. Full technical documentation and Declarations of Conformity are supplied under NDA.
Can you provide OEM private labeling and fiber laser branding?
Absolutely. We offer high-precision fiber laser marking for customer brand logos, custom reference codes, lot numbers, GS1-compliant UDI barcodes, and CE symbols. All laser marking is executed prior to final acid passivation to guarantee that markings endure repeated autoclave cycles without rusting.
What are the standard lead times for international OEM orders?
Repeat orders for standard catalog items typically ship within 15 to 25 business days. First-time OEM orders involving custom laser marking, specialized surface finishes, or bespoke pouch packaging generally require 30 to 45 business days following sample sign-off and drawing approval.
How do you test and verify corrosion resistance and hardness?
Each heat-treatment batch undergoes mandatory Rockwell (HRC) hardness testing and copper sulfate or boil testing (per ISO 7153-1 and ASTM A967) to verify passive layer integrity. Mill material certificates and batch inspection reports are archived and made available with every export shipment.
Partner with a Leading China Wholesale Bone Gouges Manufacturer
Contact our engineering desk today to receive complete dimensional blueprints, material certificates, OEM brand customization details, and factory-direct volume pricing within 24 business hours.
Send an Inquiry
